Drawing a single-line diagram in Volter, step by step

In Volter you don't draw the single-line diagram line by line. You build the distribution board, place the devices on the plan and assign them to circuits. Volter draws the diagram from that, with circuit letters, breakers, cables and a legend.

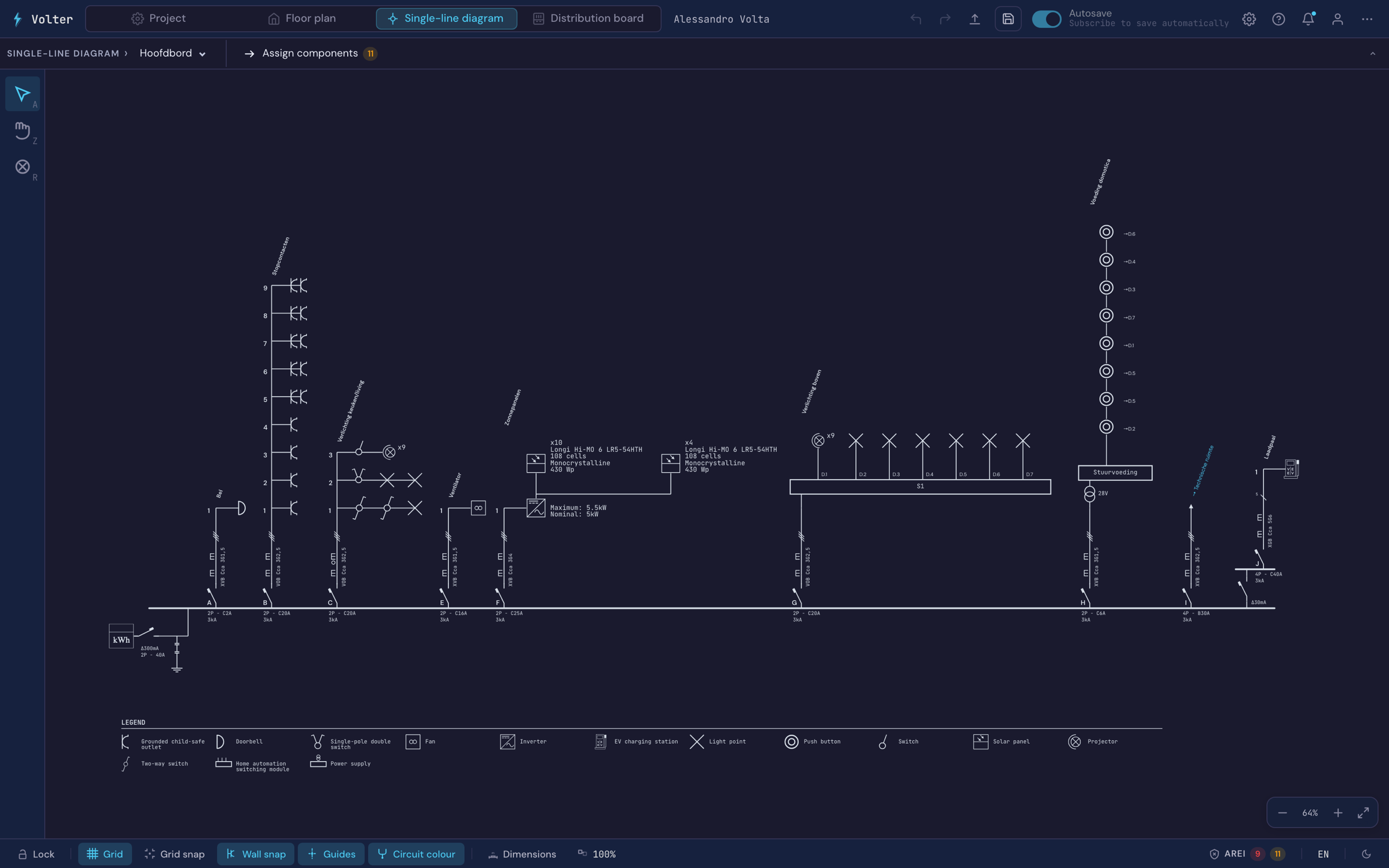

The single-line diagram of a main board as Volter draws it: every circuit with its letter, breaker, cable and numbered branches.

Drawing a single-line diagram in seven steps

  1. Create the project.
  2. Set up the distribution board.
  3. Place the devices on the plan.
  4. Assign the devices to circuits.
  5. Check the single-line diagram.
  6. Add devices from the diagram.
  7. Check and export.

1. Create the project

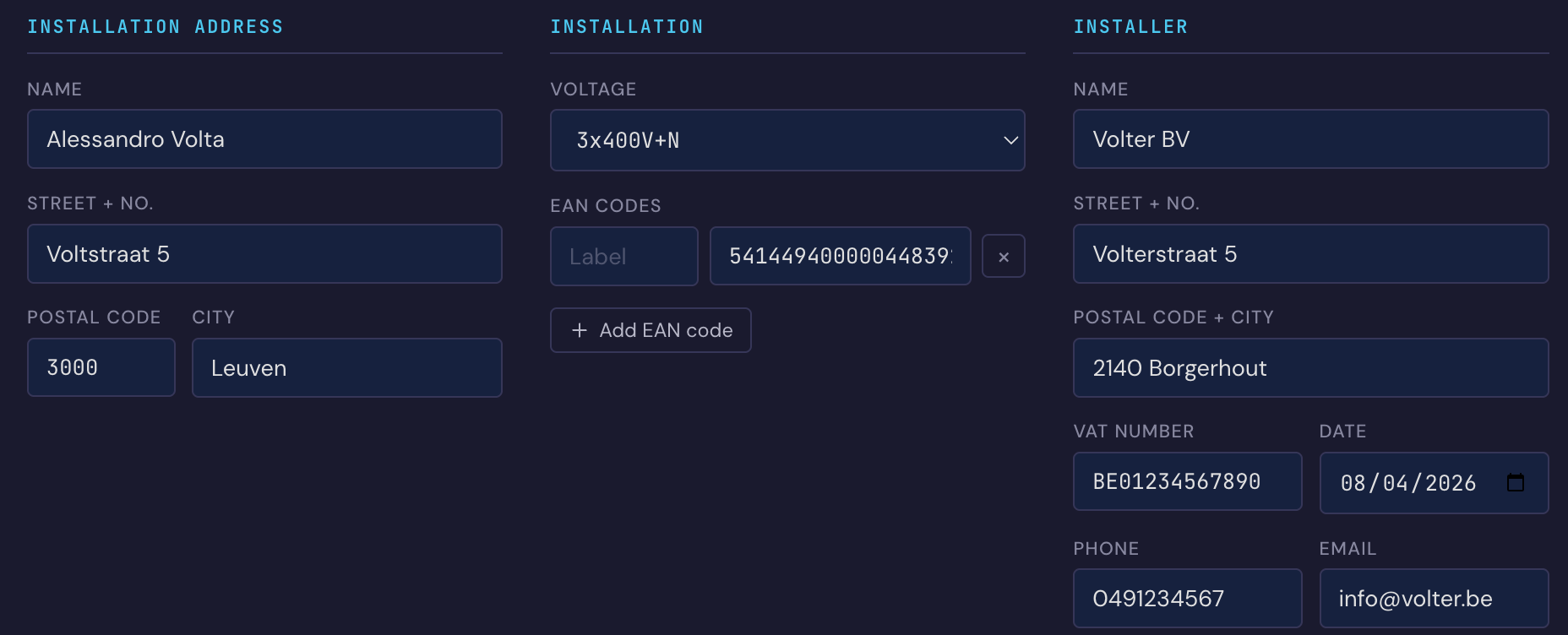

A new project asks for three things: the installation address, your details as the installer and the installation itself, with the voltage (1x230V up to 3x400V+N) and the EAN codes. Those details go into the footer of your PDF. You can save your installer details, and Volter fills them in for your next project.

You change them later in the Project tab.

2. Set up the distribution board

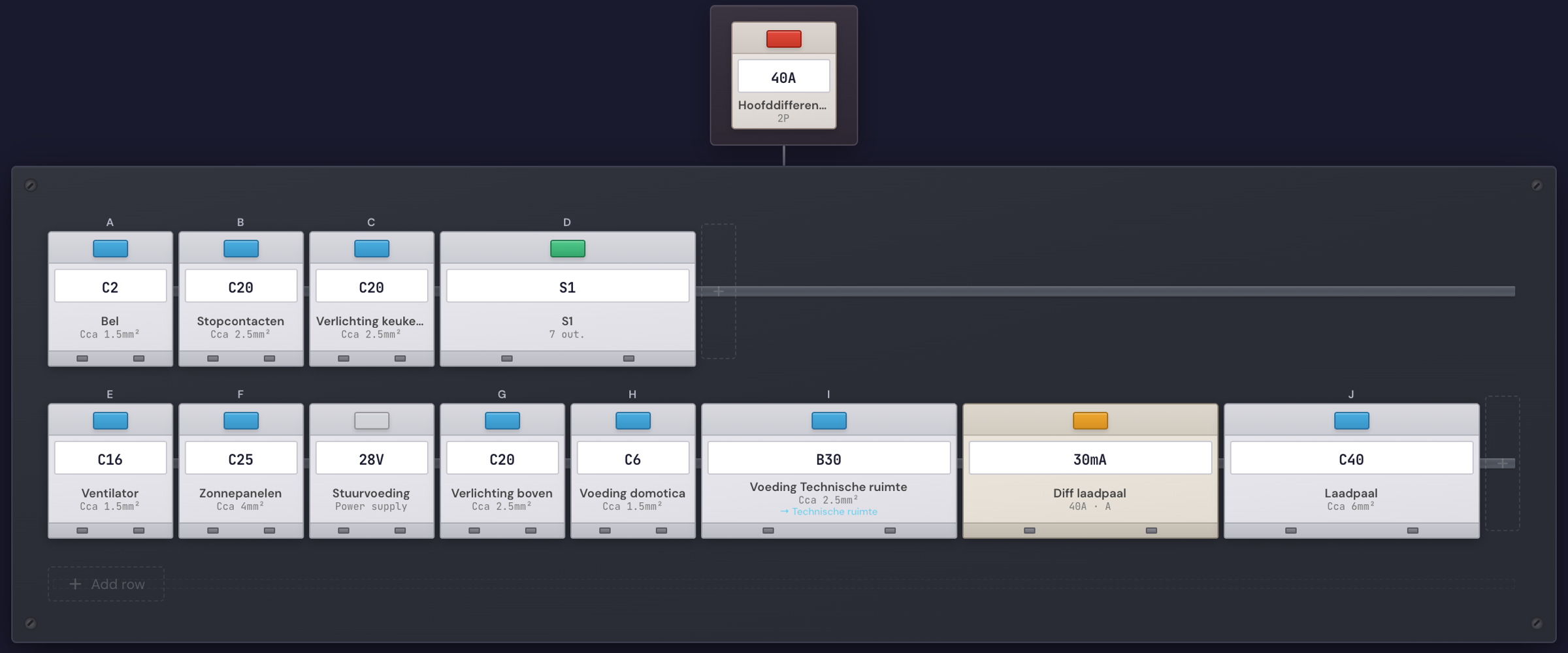

In the Distribution board tab you start with the main board: the main RCD with its amperage, short-circuit capacity and residual current. Whether it is 2P or 4P follows from the voltage you chose. Then you add RCDs and circuit breakers on the rail.

For each circuit breaker you fill in what belongs on the diagram: amperage, poles, curve, short-circuit capacity, wire size, number of cores, cable type (XVB, XGB, VOB or EXVB), CPR class and how the cable runs. Every circuit breaker is a circuit. The circuit letters A, B, C follow the order on the rail.

You add a sub-board with Add board. Volter then puts a supply breaker on the main board itself, and the circuits of the new board get the board code in front of their letter, such as T-A.

3. Place the devices on the plan

In the Floor plan tab you place light points, switches, socket outlets and appliances such as a hob, an EV charging station or an inverter where they go in the house. You don't have to draw walls. See Placing components and Drawing an electrical floor plan.

Connect a switch to its light points. They then sit together on one branch of the single-line diagram. See Connecting components.

4. Assign the devices to circuits

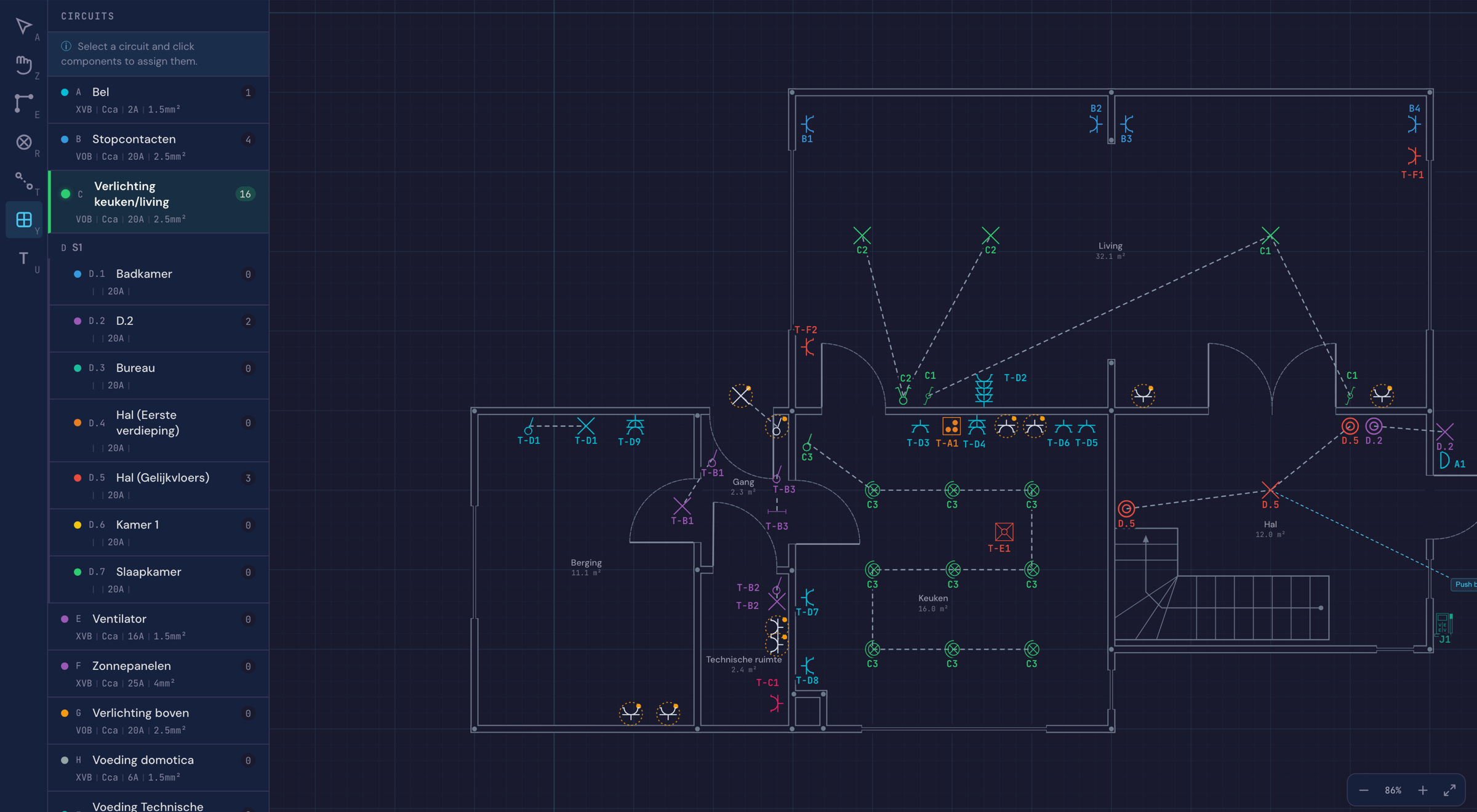

Choose Assign circuit, or press Y. Click a circuit in the list and click the devices that belong on it. Click a device again and it comes off. Connected devices move together.

An example: circuit B "Sockets kitchen and storage room" gets a 20 A breaker with 2.5 mm², and you click the socket outlets in both rooms. An EV charging station goes on a circuit of its own with its own RCD, because the AREI requires it. Volter flags it if you forget.

At the bottom of the screen you see how many devices on this floor have no circuit yet. See Assigning circuits.

5. Check the single-line diagram

The Single-line diagram tab shows, per board, the diagram Volter has drawn. On the main board that means the kWh meter, the main RCD and the earthing branch. Every circuit shows its letter, the breaker (for example 1P - B16A, 3kA), the cable (XVB Cca 3G2,5) and the symbol for the installation method.

Devices you have connected sit together on one branch, with the switch first. Three or more identical devices in a row become one symbol with the count next to it, such as x9. The legend at the bottom only contains the symbols you use.

6. Add devices from the diagram

If you think of a device while going over the diagram, you don't have to go back to the plan. Choose Place component and a symbol, and click a plus sign: above a circuit for a new branch, or to the right of a branch to add the device to it.

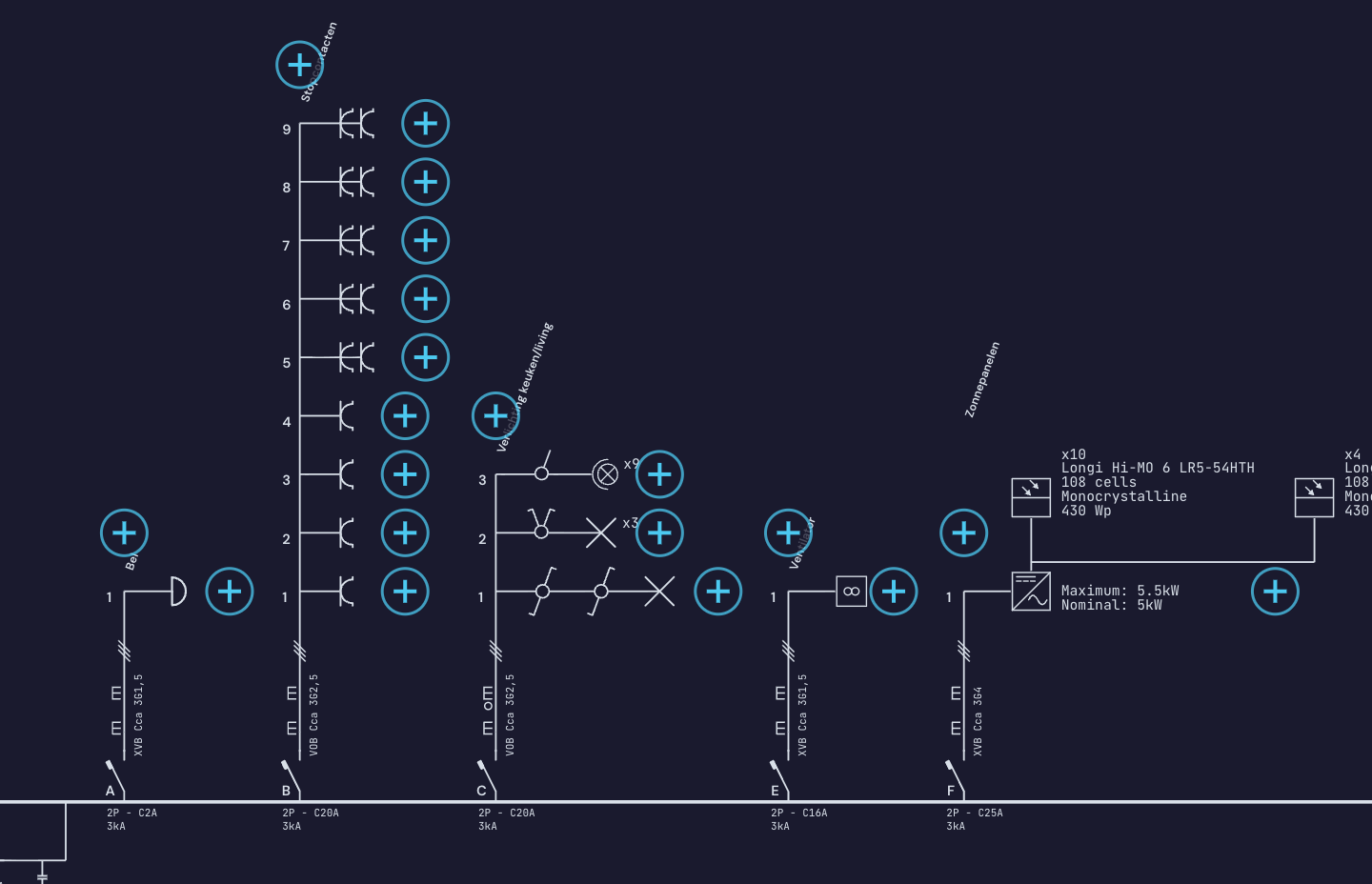

With Light point chosen, a plus sign appears next to every branch and above every circuit. Here a light point was added to branch 2 of circuit C, which now shows x3.

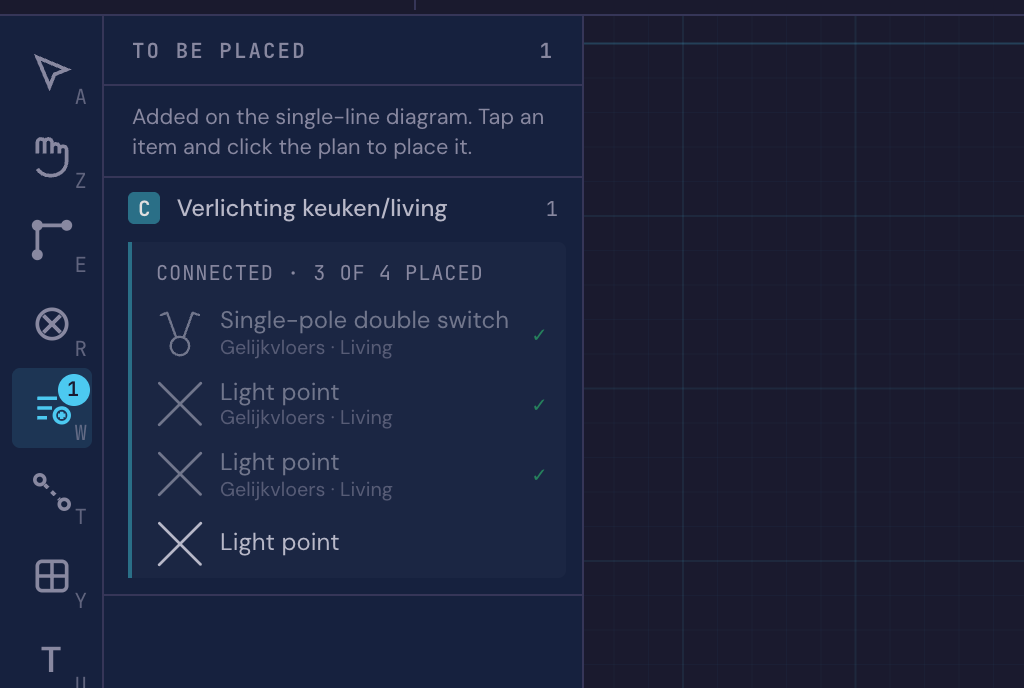

That device appears on the diagram right away and goes into To be placed. You place it on the plan later with W. Until then the AREI check reminds you, because the AREI requires every device to appear on the floor plan too.

7. Check and export

Volter checks your diagram while you draw. A finding looks like this: Circuit "Kitchen": socket outlets require at least 2.5mm² wire (currently 1.5mm²). Which rules Volter checks is described under AREI validation.

The PDF bundles a cover page, the floor plan per floor, the single-line diagram per board, the board layout, the circuit table and the bill of materials. See Export a PDF.

Home automation on the single-line diagram

You add a home automation module to the distribution board like a circuit breaker. You choose a switching or dimming module, its width in DIN modules, which breaker or RCD it sits behind and which power supply module feeds it. Then you give the outputs a name.

Every output is a circuit of its own with an address, such as D.1 or D.2. You assign light points, push buttons and detectors to it like to any other circuit. On the diagram the module is a named block on the circuit that feeds it, with a branch per output.

Turn off Home automation controlled and Volter draws a conventional switching or dimming module, without the home automation symbol.

The AREI check looks at this too: a module without a power supply, a module sitting directly behind an RCD without a circuit breaker, or an output with no load on it.

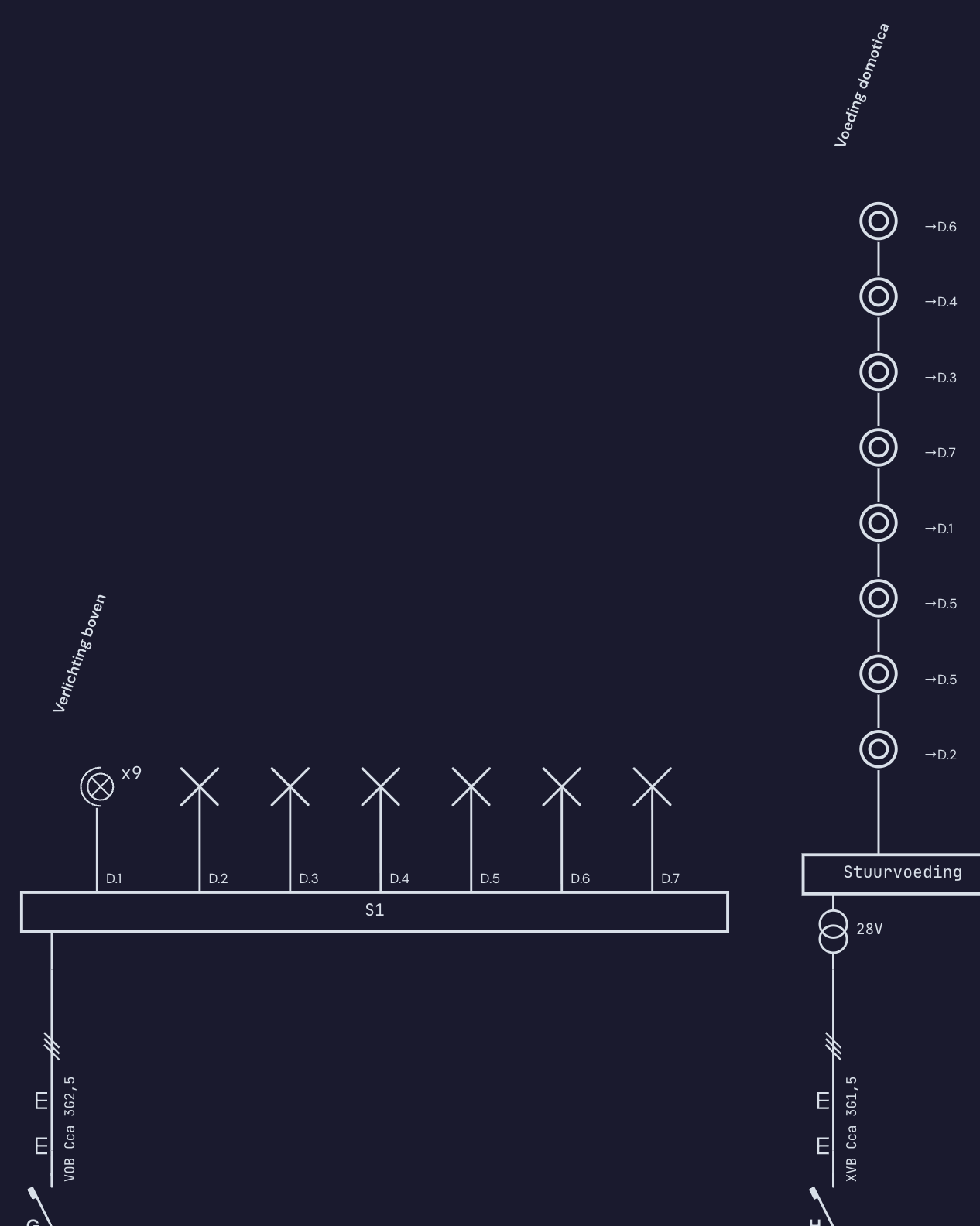

Switching module S1 hangs on circuit G, with a branch per output. The control supply on circuit H carries the push buttons.

Plan and diagram stay in step

The diagram is not a free drawing. You don't drag symbols or draw loose lines on it. The order of the circuits comes from the rail of your distribution board, the branches from the connections on the plan. That way plan and diagram can never drift apart.

The AREI check catches a lot, but it is an aid and not a guarantee. Making sure the diagram matches the installation remains your job.

Problems

I want to change the order of the circuits

You do that in the distribution board. The circuits appear on the diagram in the order of the rail. Drag a breaker along the rail and the circuit moves on the diagram, and its letter changes with it.

How do I draw a sub-board?

With Add board in the distribution board. Volter puts a supply breaker for the new board on the main board and draws a separate single-line diagram for each board. The circuits get the board code in front of their letter.

My switch is not on the same branch as its light point

They are not connected on the plan. A branch follows from the connections you draw. Connect the switch to the light point with Draw connection and they end up together on one branch, with the switch first.

How does a two-way circuit appear on the single-line diagram?

Connect the two-way switches, any intermediate switches and the light points on the plan, and put them on the same circuit. Volter draws them on one branch: first one two-way switch, the intermediate switches and the second two-way switch, then the light points. If there are not two two-way switches, the AREI check flags it.

Can I make a single-line diagram without a floor plan?

You can add devices straight onto the single-line diagram. They wait in To be placed until you put them on the plan. The AREI requires both diagrams, so Volter keeps reminding you as long as devices are waiting.

A device is not on the single-line diagram

It has no circuit yet. Only devices with a circuit appear on the diagram. Assign it a circuit with Assign circuit.
