Drawing an electrical floor plan in Volter

The floor plan shows where each device sits in the house and which circuit it is on. In Volter it is also your starting point: the single-line diagram is derived from it.

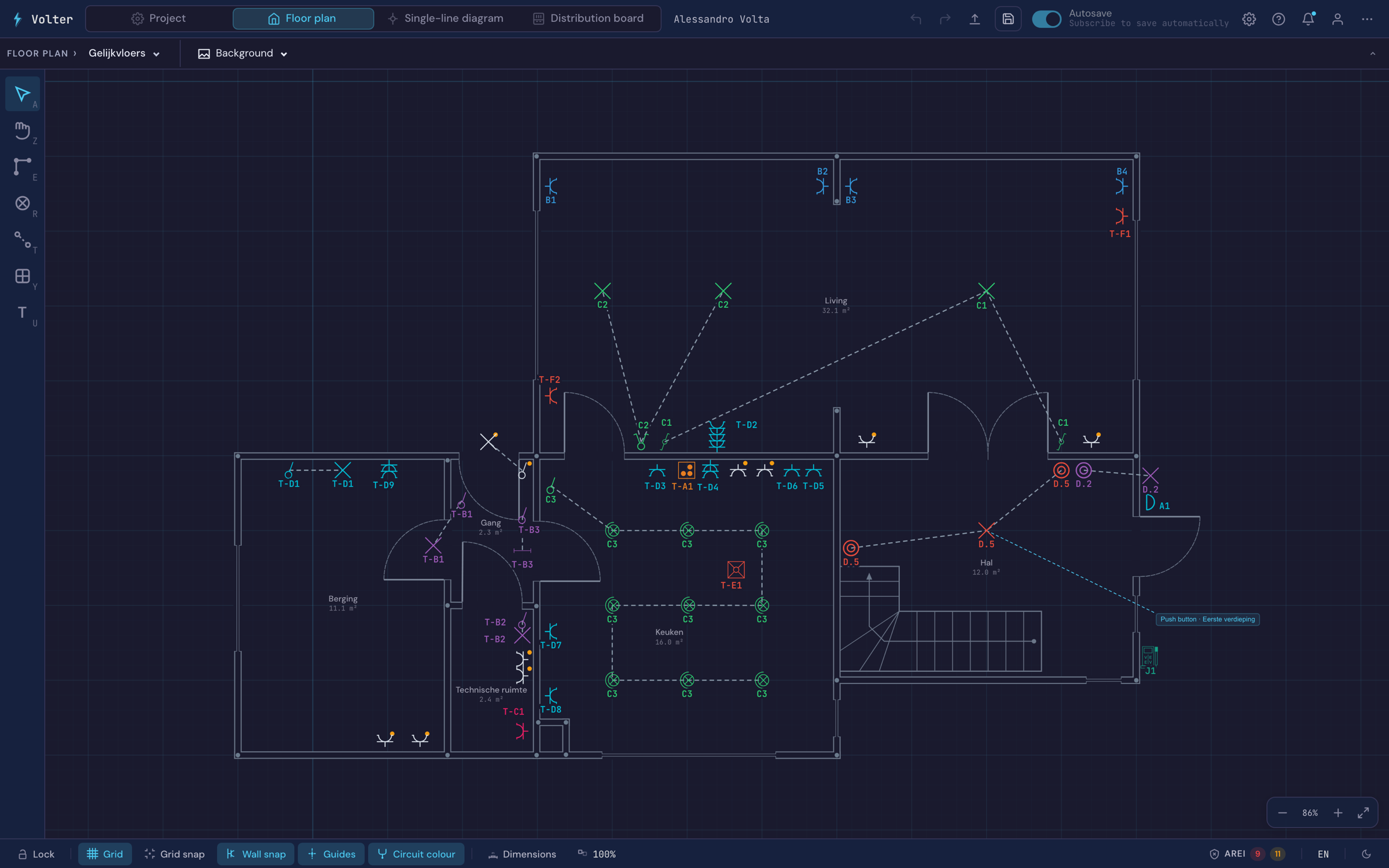

The floor plan of the demo home: walls, rooms and the electrical symbols in place.

The floor plan: draw it, import it or skip it

You have three ways to get a floor plan.

Draw it yourself. Click Build for walls (S), doors (D) and windows (F). You find stairs and furniture under Furnishing. See Drawing walls and rooms, Doors and windows and Stairs and furniture.

Use the architect's plan. Lay it under your drawing as a background: a PDF (you pick the page), a DXF file or an image, such as a photo of a paper plan. Then calibrate the scale: click two points whose real distance you know, for example a dimension line or a 93 cm door opening, and enter that distance. Wall lengths, dimensions and areas then match the house.

Skip it. You can start placing symbols without drawing a single wall. For the single-line diagram only the devices, their circuit and their connections count.

Rooms that matter

With Assign room (G) you click inside an enclosed space and Volter recognises the room from the walls. Without walls you drag a rectangle. A room carries a name and, if you like, its area on the plan.

Two properties drive the AREI check:

  • Bath or shower: every circuit going to that room must sit behind a 30 mA RCD.
  • Damp room: a basement, garage, laundry room or covered terrace. Ordinary socket outlets there give a warning, splash-proof ones do not.

In the PDF the bill of materials counts every symbol per floor and per room, so on site you see per room what belongs there.

Placing symbols

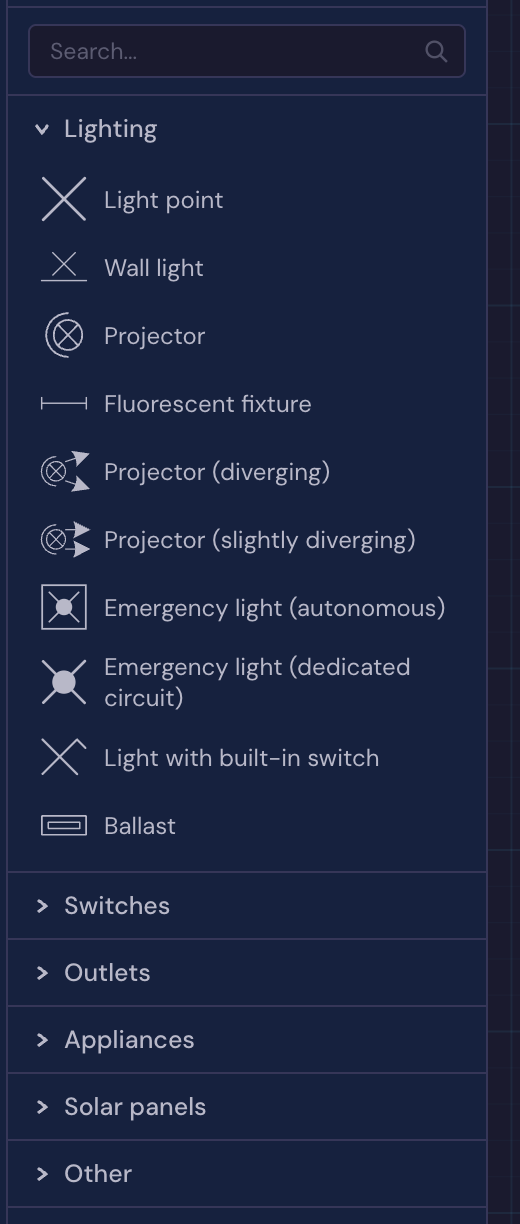

Choose Place component (R). The panel has six groups: Lighting, Switches, Outlets, Appliances, Solar panels and Other. You search by name or pick from your favourites. While placing you choose the quantity right away and, if you already know it, the circuit. See Placing components.

Some devices carry data the diagram and the inspection ask for: the power of an EV charging station, the peak wattage of solar panels, the maximum and nominal power of an inverter.

Data and coax outlets can go on the plan. They do not appear on the single-line diagram, because the AREI keeps them outside the electrical installation.

Circuits and connections on the plan

With Draw connection (T) you link devices, such as a switch to its light points. With Assign circuit (Y) you put them on a circuit. Every device then gets a reference on the plan such as B1. With Circuit colour at the bottom you see the colour of its circuit outside that tool too.

See Connecting components, Assigning circuits and, for the next step, Drawing a single-line diagram.

Several floors

A project starts with the ground floor. You add floors, rename, duplicate or reorder them under Floor at the top. Duplicating saves drawing work when floors are identical.

A circuit that spans two floors, such as a staircase two-way circuit, you connect with Connect to other floor.... At the bottom you see per floor how many devices still have no circuit, and the PDF gets a floor plan per floor.

Problems

Does the floor plan have to be to scale?

It doesn't have to be, but it helps. Calibrate an imported plan and wall lengths, dimensions and areas match the real house. That makes the plan more useful for your client and for whoever works on it later.

Can I use the architect's plan?

Yes. Lay it under your drawing as a PDF, DXF or image and calibrate the scale on a known distance. You can leave it as a background or trace your walls over it.

Do data and coax outlets belong on the floor plan?

They may go on it, and many installers add them because it makes the plan useful for the client. They do not belong on the single-line diagram: Book 1 excludes installations for data transmission and cable distribution from its scope. Volter therefore only puts them on the plan.

How do I draw a staircase two-way circuit across two floors?

Put each two-way switch on its own floor and link them with Connect to other floor... in the right-click menu. Then put the switches and the light point on the same circuit, as with any other two-way circuit.

I cannot add an extra floor

Several floors are part of the subscription. Without a subscription, Add floor opens a window to upgrade.
